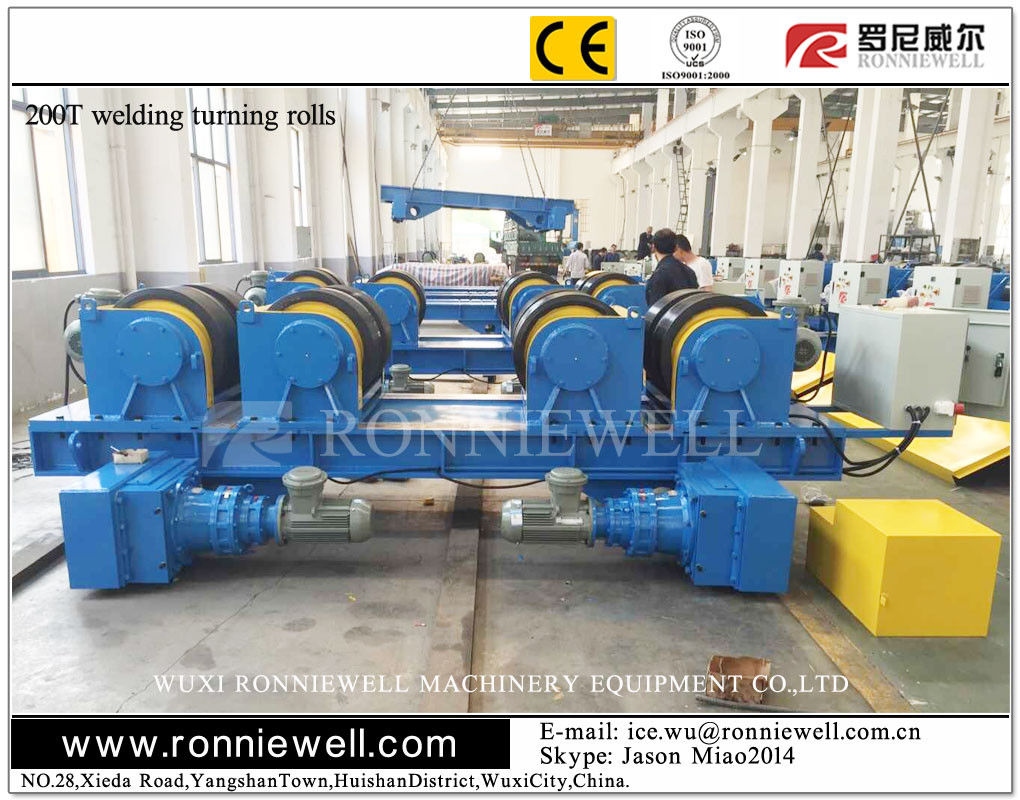

Motorized travel conventional welding rotator for pipe tank seam welding

Chứng nhận
Trung Quốc WUXI RONNIEWELL MACHINERY EQUIPMENT CO.,LTD Chứng chỉ
Trung Quốc WUXI RONNIEWELL MACHINERY EQUIPMENT CO.,LTD Chứng chỉ
Tôi trò chuyện trực tuyến bây giờ

Motorized travel conventional welding rotator for pipe tank seam welding

Motorized travel conventional welding rotator for pipe tank seam welding
Motorized travel conventional welding rotator for pipe tank seam welding Motorized travel conventional welding rotator for pipe tank seam welding

Hình ảnh lớn :  Motorized travel conventional welding rotator for pipe tank seam welding

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Ronniewell
Chứng nhận: CE &ISO
Model Number: HGK-200
Thanh toán:
Minimum Order Quantity: 1 set
Giá bán: USD3000-50000/set
Packaging Details: 1. Main frame naked; 2. Control box wrapped by plastic film; 3. Small parts adopts plywood case.
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 50sets/month

Motorized travel conventional welding rotator for pipe tank seam welding

Sự miêu tả
Loading capacity:: 5tons - 200tons Roller material:: Polyurethane or Rubber or Steel roller
Traveling way:: Automatic or Manual traveling on the rail Roll dia. and width: 650*325mm
Roll motor power:: 2*5.5KW Useage:: Auxiary welding equipment for auto welding
After-sales Service Provided:: Engineers available to service Color::: Blue or customerized
Điểm nổi bật:

pipe turning rolls

,

tank rollers

Motorized travel conventional welding rotator Names

pipe welding rotator, pipe pipe welding rotator, pipe turning rolls, pipe welding rotators, welding roller, tank turning rolls, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned pipe welding rotator, self-aligning pipe welding rotator, self adjustable pipe welding rotator, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional pipe welding rotator, bolt adjustable pipe welding rotator, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station


Motorized travel conventional welding rotator Description

1. Motorized travel conventional welding rotator is be researched, designed and manufactured absorbing domestic and international advanced equipment.

2. Motorized travel conventional welding rotator mainly used for big pipe, containers, boilers, pressure vessels, oil tank, wind tower and other cylinders assembly welding, blasting and painting.

3. Motorized travel conventional welding rotator can assort all kinds of auto welding or manual welding, improving welding quality, reducing the labor and improving productivity.


Motorized travel conventional welding rotator Application

1. Pressure vessels

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job


Motorized travel conventional welding rotator Feature:

1. Motorized travel conventional welding rotator from the HGK series have a strong and durable construction with creates a very high stability.

2. Motorized travel conventional welding rotator as its roll material ,which won't scratch the tank surface .

3. These Motorized travel conventional welding rotator have top-class electronic components, stepless adjustable speed of the driven part in CE marked. The favourable price performance ratio yields will ensure a quick payback of your investment.

4. HGK series Motorized travel conventional welding rotator can be supplied with a capacity from 5000 kg up to 1200 Tons.

5. We also provide tailor-made HGK welding rotators according to your special requirements.


Motorized travel conventional welding rotator Main Technical Parameter

Motorized travel conventional welding rotator for pipe tank seam welding 0

Main technical parameter
Model HGK-02 HGK-05 HGK-10 HGK-20 HGK-40 HGK-60 HGK-80 HGK100 HGK150

Rated loading

(T)

2 5 10 20 40 60 80 100 150

Vessel diameter

range (mm)

150-2000 250-2300 320-2800 500-3500 600-4200 750-4500 800-5000

1000

-5500

1000

-6000

PU roller

dia. and width (mm)

200*80 250*100 300*120 350*150 400*180 450*180*2 450*200*2 500*240*2 500*260*2

Metal roller

dia. and width (mm)

/ / / / / / / / /

Linear speed

(mm/min)

100-1000
Speed control Variable Frenquency Drive speed control

Motor power

(kW)

2*0.18 2*0.37 2*0.55 2*1.1 2*1.5 2*2.2 2*3 2*3 2*4

Traveling speed

- Optional (mm/min)

3000mm/min

Traveling motor

- Optional (kW)

2*0.18 2*0.37 2*0.55 2*0.75 2*1.1 2*1.5 2*2.2 2*3 2*3

Production

Motorized travel conventional welding rotator for pipe tank seam welding 1



Motorized travel conventional welding rotator for pipe tank seam welding 2


What Ronniewell can do for Ronniewell customers:

1. Give you high quality products.

2. Give you five-star price.

3. Give you suitable recommendation.

4. Give you good after-service.

5. Give you professional technical guide.

6. Warmly welcome you visit our factory.
